Polygon Turning Machines

The Preferred Brand for Polygon Turning
Automate Your Polygonal Operations
Trishul Machine Tools Pvt. Ltd Polygon Turning Machines are faster, more accurate and higher in productivity. The machines themselves are almost completely automated and are simple to operate, leaving behind a flawless high precision finished surface on the machined components. Trishul Machine Tools Pvt. Ltd has two different Polygon Turning Machine Models to choose from that suit specific application and usage.

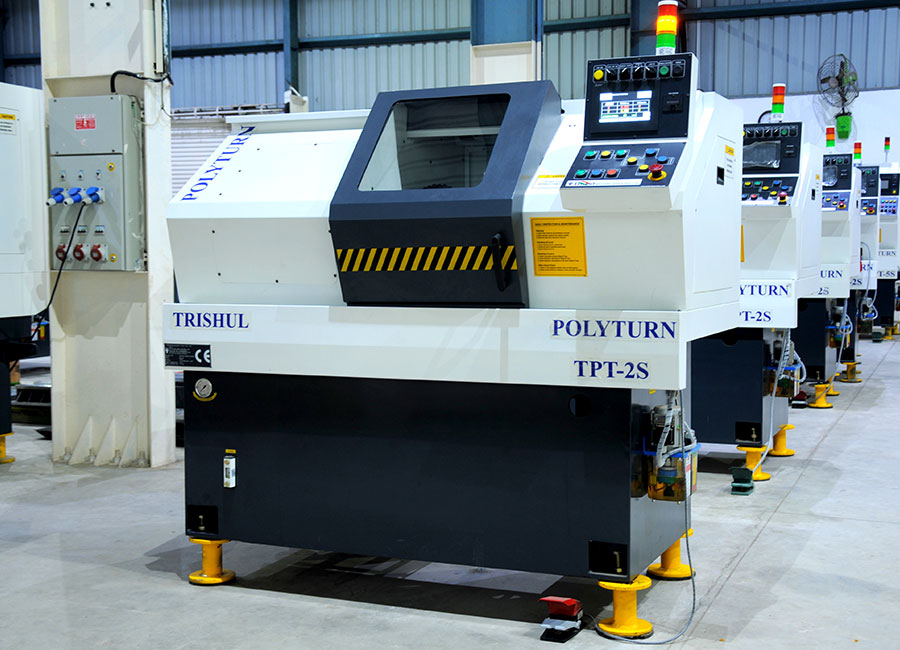

Model: TPT-2S
A versatile, popular and advanced model, this model takes care of most of the general engineering industry requirements.

The TPT-2S has servo motors for the longitudinal and cross slides, a sophisticated motion controller and a mechanical gear box with a fixed spindle speed ratio of 1:2. Suitable for even numbered polygons, this machine can generate chamfers, tapers and radius at the middle and ends of the components.

Specification
Details TPT-2S TPT-2S-60 TPT-2ST
Work Holding and Operation Collet Chuck Ø42 mm- Hydraulic Collet Chuck Ø60 mm- Hydraulic Collet Chuck Ø42 mm Hydraulic
Maximum Chucking Size Ø42 mm x 580 mm long Ø60 mm x 580 mm long Ø42 mm x 580 mm long
Maximum Machining Length 80mm Max 80mm Max 200mm Max
Maximum Size of Polygon A/F 85 mm A/F 110 mm A/F 85 mm
Spindle Speed Ratio 1:2 Std Mechanical 1:2 Std Mechanical 1:2 Std Mechanical
Work Spindle Nose Type and Size DIN A2-5 DIN A2-6 DIN A2-5
Main Spindle Motor TEFC 2.2 kW 3 Ph 1440 RPM TEFC 2.2 kW 3 Ph 1440 RPM TEFC 2.2 kW 3 Ph 1440 RPM
Main Spindle Drive Mitsubishi Variable Freq. Drive Mitsubishi Variable Freq. Drive Mitsubishi Variable Freq. Drive
Tailstock -- -- MT3
Hydraulic Rotating Cylinder GMT-Ø80 CH GMT-Ø80 CH GMT-Ø80 CH
Z Axis Stroke - Drive 100 mm-Servomotor 100 mm-Servomotor 200 mm-Servomotor
X Axis Stroke - Drive 140 mm-Servomotor 140 mm-Servomotor 160 mm-Servomotor
Pos Accuracy and Repeatability 10 Microns 10 Microns 10 Microns
Feed Rate 0.01-0.5 mm Per Rev 0.01-0.5 mm Per Rev 0.01-0.5 mm Per Rev
Rapid Travel Rate 10 Mtrs per Min 10 mtrs Per Min 10 mtrs Per Min
Centralized Lubrication 0.09 kW 0.09 kW 0.09 kW
Coolant Pump 0.10 kW 0.10 kW 0.10 kW
Control Voltage 220 VAC / 24 VDC 220 VAC / 24 VDC 220 VAC / 24 VDC
Main Power Supply 3 Phase, 415 VAC±10% 50 Hz 3 Phase, 415 VAC±10% 50 Hz 3 Phase, 415 VAC±10% 50 Hz
Total Connected Load 5.15 kW (7HP) 5.15 kW (7HP) 5.15 kW (7HP)
Floor Area W x L x H 1.8 M W x 1.6 M L x 1.7 M H 1.8 M W x 1.6 M L x 1.7 M H 1.8 M W x 1.6 M L x 1.7 M H
Nett Weight 1600 Kgs 1600 Kgs 1600 Kgs
Gross Weight 1850 Kgs 1850 Kgs 1850 Kgs
